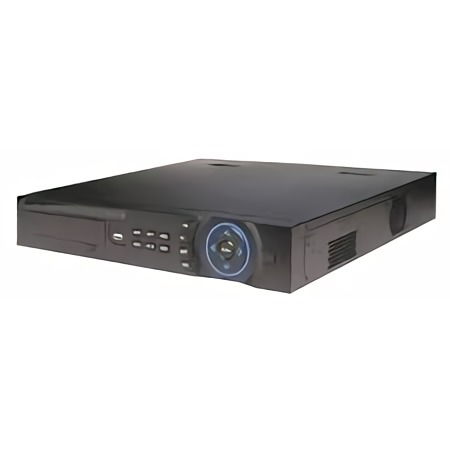

Model
|
ZV-AHD5016N
|
|
Chip
|
Hisilicon HI3531
|
|
Video Input
|
AHD DVR:
AHD :16CH*1080N@12fps
TVR : 16*1080N
CVI : 16*1080N
HVR : 8CH*1080N+8CH*960P
NVR : 8CH*960P/16CH*960P/4CH*3M/4CH*5M
|
|
Video Output
|
1*HDMI/1*VGA
|
|
Audio In/Out
|
2CH / 1CH
|
|
Recording
|
1080P/720P/960H
|
|
Playback
|
16ch*1080N non-realtime
|
|
HDD
|
2 X SATA (Up to 6TB)
|
| Network | RJ45 10M/100M Adaptive Ethernet port |
|
Mobile Software
|
XMEye
|
|
Cloud Access
|
Xmeye.net
|
|
RS485 PTZ
|
YES, One RS485；support multiple PTZ protocols
|
|
Power Supply
|
12V 3A
|
|
Unit Dimension
|
233mm*300mm* 45mm
|
